SMA Series
Specifications
Electrical:
|
Impedance |
50 ohm |
||
|
|
0 - 12.4 GHz on Flexible cable 0 - 18 GHz on Semi-rigid cable |
||
|
Working Voltage |
RG-178:170 VRMS max. RG-316,.085” :250 VRMS max. RG-142,.141” :335 VRMS max. |
||
|
Dielectric Withstanding Voltage |
RG-178:500 VRMS min. RG-316,.085” :750 VRMS min. RG-142,.141” :1000 VRMS min. |
||
|
VSWR |
Straight |
1.3 max |
|
|
Right Angle |
1.5 max |
||
|
Contact Resistance |
Center Contact |
6 Milliohms Max. |
|
|
Outer Contact |
2 Milliohms Max. |
||
|
Insulator Resistance |
5000 Megohms min. |
||
Material:
|
Parts
Name |
Material |
Finish |
|
Body, Metal Parts |
Brass per QQ-B-626 or Non-magnetic stainless steel per QQ-S-764#303 |
Nickel, Gold or passivity per requirement. |
|
Center Contacts |
Plug: Brass per QQ-B-626 |
Gold |
|
Jack: Beryllium copper per QQ-C-530 or Phosphor Bronze per QQ-B-750 |
Gold |
|
|
Insulators |
Teflon |
None |
|
Crimp Ferrules |
Annealed copper |
Nickel or Gold per requirement |
|
Clamp Gaskets |
Silicone rubber |
None |
NOTE:Other Material/Finish is Available on Request.
Mechanical
& Environmental:
|
Engagement Force |
2 in-lbs. max. |
|
Disengagement Force |
2 in-lbs. max. |
|
Coupling Nut Retention |
60 lbs. min. |
|
Coupling Proof Torque |
15 in-lbs. min. |
|
Contact Retention |
6 lbs. min. |
|
Durability(Mating) |
500 cycles min.(For Beryllium copper Jack contact only) |
|
|
-65°C to 165°C |
Vibration
|
MIL-STD-202 Method 204 Test Cond.B. |
Salt Spray
|
MIL-STD-202 Method 101 Test Cond.B. |
Thermal Shock
|
MIL-STD-202 Method 107 Test Cond.B. |

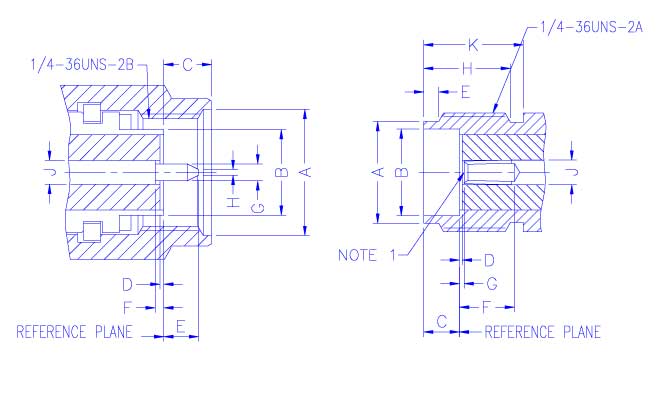

INTERFACE MATING DIMENSIONS
|
PLUG |
|
|
JACK |
||||
|
Letter |
Millimeters |
|
|
Letter |
Millimeters |
||
|
Minimum |
Maximum |
|
|
Minimum |
Maximum |
||
|
A |
6.35 |
6.73 |
|
|
A |
5.28 |
5.49 |
|
B |
4.53 |
4.59 |
|
|
B |
4.60 |
4.67 |
|
C |
2.54 |
3.43 |
|
|
C |
1.88 |
1.98 |
|
D |
0.00 |
0.25 |
|
|
D |
0.00 |
0.25 |
|
E |
1.91 |
2.54 |
|
|
E |
0.38 |
1.14 |
|
F |
0.00 |
0.25 |
|
|
F |
2.92 |
- |
|
G |
0.90 |
0.94 |
|
|
G |
0.00 |
0.25 |
|
H |
0.00 |
0.38 |
|
|
H |
4.32 |
- |
|
J |
1.24 |
1.30 |
|
|
J |
1.24 |
1.30 |
|
|
|
|
|
|
K |
5.54 |
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE
1:I.D. TO MEET VSWR AND CONTACT RESISTANCE
WHEN MATED WITH 0.9/0.94 MM DIA. PIN.
