MINI BNC Series
Specifications
Electrical:
|
Impedance |
75 ohm | |
|
|
0 - 2 GHz | |
|
Working Voltage |
300 VRMS max. | |
|
Dielectric Withstanding Voltage |
1000 VRMS min. | |
|
VSWR |
1.1 max. to 500MHz | |
|
1.16 max. to 1GHz | ||
|
Contact Resistance |
Center Contact |
12 Milliohms Max. |
|
Outer Contact |
12 Milliohms Max. | |
|
Insulator Resistance |
1000 Megohms min. | |
Material:
|
Parts Name |
Material |
Finish |
|
Body, Metal Parts |
Brass per QQ-B-626 |
Nickel or Gold |
|
Center Contacts |
Plug: Brass per QQ-B-626 |
Gold |
|
Jack: Phosphor Bronzeper QQ-B-750 |
Gold | |
|
Insulators |
Teflon |
White |
|
Crimp Ferrules |
Annealed copper |
Nickel or Gold |
NOTE:Other Material/Finish is Available on
Request.
Mechanical &
Environmental:
|
Engagement Force |
|
|
Disengagement Force |
|
|
Coupling Nut Retention |
|
|
Contact Retention |
|
|
Durability(Mating) |
500 cycles min. |
|
|
|
|
Vibration |
MIL-STD-202 Method 204 Test Cond.B. |
|
Salt
Spray |
MIL-STD-202 Method 101 Test Cond.B. |
|
Thermal
Shock |
MIL-STD-202 Method 107 Test Cond.B. |

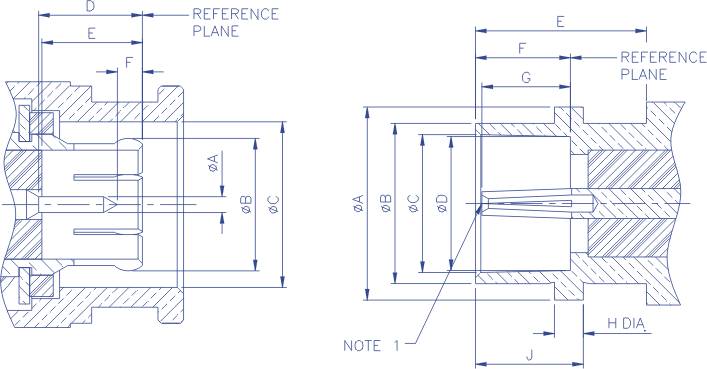

INTERFACE MATING
DIMENSIONS
|
PLUG |
|
|
JACK | ||||
|
Letter |
Millimeters |
|
|
Letter |
Millimeters | ||
|
Minimum |
Maximum |
|
|
Minimum |
Maximum | ||
|
A |
0.72 |
0.76 |
|
|
A |
8.89 |
9.14 |
|
B |
FLARED TO MEET GOOD |
|
|
B |
7.44 |
7.54 | |
|
C |
7.70 |
7.80 |
|
|
C |
6.40 |
6.50 |
|
D |
4.55 |
5.05 |
|
|
D |
6.22 |
6.32 |
|
E |
4.55 |
4.85 |
|
|
E |
7.70 |
- |
|
F |
0.92 |
1.42 |
|
|
F |
4.35 |
4.55 |
|
|
|
|
|
|
G |
3.85 |
4.35 |
|
|
|
|
|
|
H |
1.27 |
1.43 |
|
|
|
|
|
|
J |
4.96 |
5.10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE
1:I.D. TO MEET VSWR AND CONTACT RESISTANCE
WHEN MATED WITH 0.72/
