1.0/2.3 Series
Specifications
Electrical:
|
Impedance |
50 ohm | ||
|
|
0-4 GHz | ||
|
Working Voltage |
250 VRMS max. | ||
|
Dielectric Withstanding Voltage |
750 VRMS min. | ||
|
VSWR |
Straight |
1.3 max | |
|
Right Angle |
1.5 max | ||
|
Contact Resistance |
Center Contact |
6 Milliohms Max. | |
|
Outer Contact |
3 Milliohms Max. | ||
|
Insulator Resistance |
1000 Megohms min. | ||
Material:
|
Parts Name |
Material |
Finish |
|
Plug |
Body/Metal Parts: Brass per QQ-B-626 |
Nickel |
|
Outer Contacts: Phosphor Bronze per QQ-B-750 |
Gold | |
|
Center Contacts: Brass per QQ-B-626 |
Gold | |
|
Jack |
Body/Metal Parts: Brass per QQ-B-626 |
Gold/Nickel |
|
Center Contacts: Beryllium copper per QQ-C-530 |
Gold | |
|
Insulators |
Teflon |
None |
|
Crimp Ferrules |
Annealed copper |
Nickel or Gold per requirement |
NOTE:Other Material/Finish is Available on
Request.
Mechanical
|
Engagement Force |
2.3 lbs. max. |
|
Disengagement Force |
2.3 lbs. max. |
|
Contact Retention |
4 lbs. min. |
|
Durability(Mating) |
500 cycles min.(for Beryllium copper Jack contact only) |

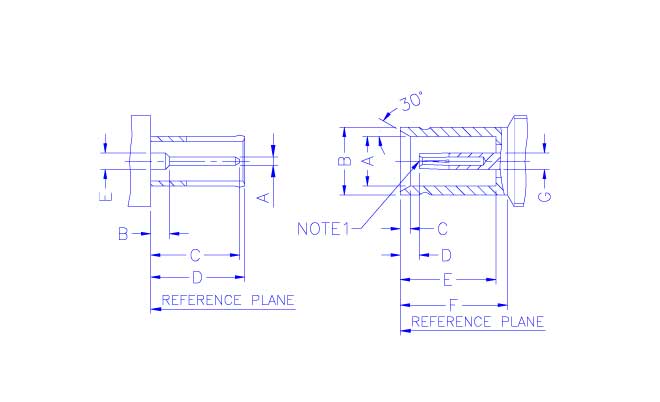

INTERFACE MATING
DIMENSIONS
|
PLUG |
|
|
JACK | ||||
|
Letter |
Millimeters |
|
|
Letter |
Millimeters | ||
|
Minimum |
Maximum |
|
|
Minimum |
Maximum | ||
|
A |
0.48 |
0.52 |
|
|
A |
3.00 |
3.06 |
|
B |
- |
1.15 |
|
|
B |
4.03 |
4.15 |
|
C |
- |
5.50 |
|
|
C |
0.50 |
0.60 |
|
D |
5.40 |
5.70 |
|
|
D |
1.15 |
- |
|
E |
0.98 |
1.02 |
|
|
E |
5.80 |
5.90 |
|
|
|
|
|
|
F |
6.40 |
6.50 |
|
|
|
|
|
|
G |
0.98 |
1.02 |
|
|
|
|
|
|
|
|
|
NOTE
1:I.D. TO MEET VSWR AND
CONTACT RESISTANCE
WHEN MATED WITH 0.48/0.52 MM DIA. PIN.
